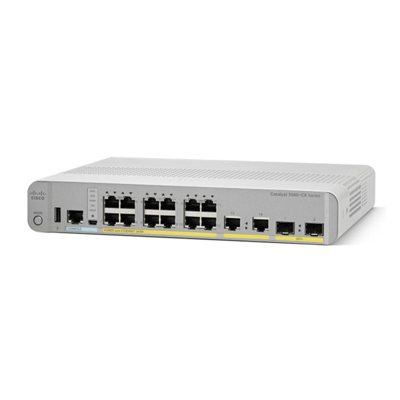

سوئیچ سیسکو مدل WS-C3560CX-8PC-S WS-C3560CX-8PC-S Catalyst Compact switch

 Product Code

 WS-C3560CX-12PC-S

 Feature Set

 IP Base

 Uplink Interfaces

 2 x 1G copper plus 2 x 1G SFP

 Ports

 12 x 10/100/1000 Gigabit Ethernet

 PoE+ Power

 240W

 Forwarding Bandwidth

 16 Gbps

 Switching Bandwidth (full-duplex capacity)

 32 Gbps

 RAM

 512 MB

 Flash Memory

 128 MB

 Dimensions

 4.44 x 26.9 x 23.8 cm

  1

 Mode button

  5

 12 x 10/100/1000 ports

  2

 USB Type A port

  6

 2 x 1G copper

  3

 RJ-45 Console Port

  7

 SFP module slots

  4

 USB mini-Type B (console) port

  8

 Switch LEDs

WS-C3560CX-12PC-S Specification

 Ethernet Ports

 12 x 10/100/1000 Gigabit Ethernet

 PoE
 Output Ports

 12 PoE+

 Available
 PoE Power

 240W

 Uplinks

 2 x 1G copper plus

 2 x 1G SFP

 Default Software

 IP Base (IP Services with RTU License)

 Powering Option

 Internal power supply

 Available PoE Power (W)

 240W

 Can Switch Be Powered with Uplinks?

 No

 Forwarding Bandwidth

 16 Gbps

 Switching Bandwidth (full-duplex capacity)

 32 Gbps

 Flash memory

 128 MB

 Memory DRAM

 512 MB

 Max VLANs

 1023

 VLAN IDs

 4000

 Maximum transmission unit (MTU)

 Up to 9000 bytes

 Jumbo frames

 9198 bytes

 Forwarding rate 64 Byte Packet

 23.8 mpps

 Dimensions
 (H x W x D)

 1.75 x 10.6 x 9.4 in (4.44 x 26.9 x 23.8 cm)

 Weight

 5.1 lb (2.31 Kg)

 Operating* temperature up to 5000 ft (1524 m)

 -5°C to +45°C (+23°F to +113°F)

 Operating* temperature up to 10,000 ft (3048 m)

 -5°C to +45°C (+23°F to +113°F)

 Storage temperature up to 15,000 ft (4572 m)

 -25°C to +70°C (-13°F to +158°F)

 Operating altitude

 Up to 3048 m (Up to 10,000 ft)

 Storage altitude

 Up to 4000 m (Up to 15,000 ft)

 Operating relative humidity

 5% to 95% noncondensing

 Storage relative humidity

 5% to 95% noncondensing

 MTBF

 553,140






































 Management

 ●  BRIDGE-MIB

 ●  CISCO-CABLE-DIAG-MIB

 ●  CISCO-CDP-MIB

 ●  CISCO-CLUSTER-MIB

 ●  CISCO-CONFIG-COPY-MIB

 ●  CISCO-CONFIG-MAN-MIB

 ●  CISCO-DHCP-SNOOPING-MIB

 ●  CISCO-ENTITY-VENDORTYPE-OID-MIB

 ●  CISCO-ENVMON-MIB

 ●  CISCO-ERR-DISABLE-MIB

 ●  CISCO-FLASH-MIB

 ●  CISCO-FTP-CLIENT-MIB

 ●  CISCO-IGMP-FILTER-MIB

 ●  CISCO-IMAGE-MIB

 ●  CISCO-IP-STAT-MIB

 ●  CISCO-LAG-MIB

 ●  CISCO-MAC-NOTIFICATION-MIB

 ●  CISCO-MEMORY-POOL-MIB

 ●  CISCO-PAGP-MIB

 ●  CISCO-PING-MIB

 ●  CISCO-POE-EXTENSIONS-MIB

 ●  CISCO-PORT-QOS-MIB

 ●  CISCO-PORT-SECURITY-MIB

 ●  CISCO-PORT-STORM-CONTROL-MIB

 ●  CISCO-PRODUCTS-MIB

 ●  CISCO-PROCESS-MIB

 ●  CISCO-RTTMON-MIB

 ●  CISCO-SMI-MIB

 ●  CISCO-STP-EXTENSIONS-MIB

 ●  CISCO-SYSLOG-MIB

 ●  CISCO-TC-MIB

 ●  CISCO-TCP-MIB

 ●  CISCO-UDLDP-MIB

 ●  CISCO-VLAN-IFTABLE

 ●  RELATIONSHIP-MIB

 ●  CISCO-VLAN-MEMBERSHIP-MIB

 ●  CISCO-VTP-MIB

 ●  ENTITY-MIB

 ●  ETHERLIKE-MIB

 ●  IEEE8021-PAE-MIB

 ●  IEEE8023-LAG-MIB

 ●  IF-MIB

 ●  INET-ADDRESS-MIB

 ●  OLD-CISCO-CHASSIS-MIB

 ●  OLD-CISCO-FLASH-MIB

 ●  OLD-CISCO-INTERFACES-MIB

 ●  OLD-CISCO-IP-MIB

 ●  OLD-CISCO-SYS-MIB

 ●  OLD-CISCO-TCP-MIB

 ●  OLD-CISCO-TS-MIB

 ●  RFC1213-MIB

 ●  RMON-MIB

 ●  RMON2-MIB

 ●  SNMP-FRAMEWORK-MIB

 ●  SNMP-MPD-MIB

 ●  SNMP-NOTIFICATION-MIB

 ●  SNMP-TARGET-MIB

 ●  SNMPv2-MIB

 ●  TCP-MIB

 ●  UDP-MIB

 ●  ePM MIB

 Standards

 ●  IEEE 802.1D Spanning Tree Protocol

 ●  IEEE 802.1p CoS Prioritization

 ●  IEEE 802.1Q VLAN

 ●  IEEE 802.1s

 ●  IEEE 802.1w

 ●  IEEE 802.1x

 ●  IEEE 802.1AB (LLDP)

 ●  IEEE 802.3ad

 ●  IEEE 802.3af

 ●  IEEE 802.3ah
 (100BASE-X single/multimode fiber only)

 ●  IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and   1000BASE-T ports

 ●  IEEE 802.3 10BASE-T specification

 ●  IEEE 802.3u 100BASE-TX specification

 ●  IEEE 802.3ab 1000BASE-T specification

 ●  IEEE 802.3z 1000BASE-X specification

 ●  100BASE-BX (SFP)

 ●  100BASE-FX (SFP)

 ●  100BASE-LX (SFP)

 ●  1000BASE-BX (SFP)

 ●  1000BASE-SX (SFP)

 ●  1000BASE-LX/LH (SFP)

 ●  1000BASE-ZX (SFP)

 ●  1000BASE-CWDM SFP 1470 nm

 ●  1000BASE-CWDM SFP 1490 nm

 ●  1000BASE-CWDM SFP 1510 nm

 ●  1000BASE-CWDM SFP 1530 nm

 ●  1000BASE-CWDM SFP 1550 nm

 ●  1000BASE-CWDM SFP 1570 nm

 ●  1000BASE-CWDM SFP 1590 nm

 ●  1000BASE-CWDM SFP 1610 nm

 ●  RMON I and II standards

 ●  SNMPv1, SNMPv2c, and SNMPv3

 RFC compliance

 ●  RFC 768: UDP

 ●  RFC 783: TFTP

 ●  RFC 791: IP

 ●  RFC 792: ICMP

 ●  RFC 793: TCP

 ●  RFC 826: ARP

 ●  RFC 854: Telnet

 ●  RFC 951: Bootstrap Protocol

 ●  RFC 1542: BOOTP Extensions

 ●  RFC 959: FTP

 ●  RFC 1058: RIP Routing

 ●  RFC 1112: IP Multicast and IGMP

 ●  RFC 1157: SNMPv1

 ●  RFC 1166: IP Addresses

 ●  RFC 1253: OSPF Routing

 ●  RFC 1256: ICMP Router Discovery

 ●  RFC 1305: NTP

 ●  RFC 1492: TACACS+

 ●  RFC 1493: Bridge MIB

 ●  RFC 1542: Bootstrap Protocol

 ●  RFC 1583: OSPFv2

 ●  RFC 1643: Ethernet Interface MIB

 ●  RFC 1723: RIPv2 Routing

 ●  RFC 1757: RMON

 ●  RFC 1812: IP Routing

 ●  RFC 1901: SNMPv2C

 ●  RFC 1902-1907: SNMPv2

 ●  RFC 1981: MTU Path Discovery IPv6

 ●  FRC 2068: HTTP

 ●  RFC 2080: RIP for IPv6

 ●  RFC 2131: DHCP

 ●  RFC 2138: RADIUS

 ●  RFC 2233: IF MIB

 ●  RFC 2236: IP Multicast

 ●  RFC 2328: OSPFv2

 ●  RFC 2273-2275: SNMPv3

 ●  RFC 2373: IPv6 Aggregatable Addrs

 ●  RFC 2453: RIPv2 Routing

 ●  RFC 2460: IPv6 protocol

 ●  RFC 2461: IPv6 Neighbor Discovery

 ●  RFC 2462: IPv6 Autoconfiguration

 ●  RFC 2463: ICMP IPv6

 ●  RFC 2474: DiffServ Precedence

 ●  RFC 2597: Assured Forwarding

 ●  RFC 2598: Expedited Forwarding

 ●  RFC 2571: SNMP Management

 ●  RFC 2740: OSPF for IPv6

 ●  RFC 3046: DHCP Relay Agent Information Option

 ●  RFC 3101, 1587: NSSAs

 ●  RFC 3376: IGMPv3

 ●  RFC 3580: 802.1x RADIUS

 Safety standards

●  UL 60950-1

●  CAN/CSA 22.2 No. 60950-1

●  EN 60950-1

●  IEC 60950-1

●  CE Marking

●  GB 4943

●  IEC 60825

 Electromagnetic emissions certifications

●  FCC Part 15, CFR 47, Class A, North America

●  EN/IEC 61000-4-5

●  EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union

●  AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand

●  VCCI Class A, V-3/2007.04, Japan

●  KCC (Formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea

●  ANATEL, Brazil

●  CCC, China

●  GOST, Russia

 Environmental

 Reduction of Hazardous Substances (ROHS) 6

 Telco

 Common Language Equipment Identifier (CLEI) code
