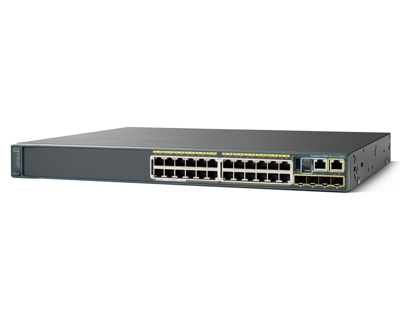

سوییچ سیسکو مدل WS-C2960S-24PS-L WS-C2960S-24PS-L Cisco 2960S Switch Layer 2

WS-C2960S-24PS-L Specifications

General Information

 Device Type

 Switch - 24 ports - Managed

 Enclosure Type

 Rack-mountable - 1U

 Ports

 24 x 10/100/1000 + 4 x SFP

 Power Over Ethernet (PoE)

 PoE

 Performance

 Switching capacity : 176 Gbps ¦ Forwarding performance (64-byte packet size) : 41.7 Mpps

 MAC Address Table Size

 8K entries

 Remote Management Protocol

 SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH

 Encryption Algorithm

 SSL

 Authentication Method

 Secure Shell (SSH), RADIUS, TACACS+

 Features

 Layer 2 switching, auto-sensing per device, dynamic IP address assignment , power over Ethernet (PoE), auto-negotiation, BOOTP support, ARP support,  load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), PoE+, Link Aggregation Control Protocol (LACP), Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN)

 Compliant Standards

 IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE  802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at

 RAM

 128 MB

 Flash Memory

 64 MB Flash

 Status Indicators

 Port status, link activity, port transmission speed, port duplex mode, power, system

Expansion / Connectivity

 Interfaces

 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE ¦ USB : 1 x 4 PIN USB Type A ¦ 1 x console - mini-USB Type B - management ¦ 1 x console - RJ-45 -  management ¦ 1 x 10Base-T/100Base-TX - RJ-45 - management ¦ 4 x SFP (mini-GBIC)

 Expansion Slot(s)

 1 (total) / 1 (free) x Stacking Module

Power

 Power Device

 Power supply - internal

 Voltage Required

 AC 120/230 V ( 50/60 Hz )

 Power Consumption Operational

 55 Watt

Miscellaneous

 Width

 44.5 cm

 Depth

38.6 cm

 Height

 4.5 cm

 Weight

 5.77 kg

 Rack Mounting Kit

 Optional

 MTBF

 245,604 hour(s)

 Compliant Standards

 TUV GS, CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, NOM, VCCI Class A ITE, EN55024, CB, EMC, MIC, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, RoHS, CSA C22.2 No. 60950-1, FCC Part 15 B Class A

 Software / System Requirements

 Software Included

 Cisco IOS LAN Base

 Service & Support

 Limited lifetime warranty

 Service & Support Details

 Limited warranty - replacement - lifetime - response time: next business day ¦ Limited warranty - power supply and fans - 5 years ¦ New releases update

Environmental Parameters

 Min Operating Temperature

 -5 °C

 Max Operating Temperature

 40 °C

 Humidity Range Operating

 10 - 95% (non-condensing)

 Min Storage Temperature

 -25 °C

 Max Storage Temperature

 70 °C

 Humidity Range Storage

 10 - 95% (non-condensing)
